RFD620 Ultrasonic Flaw Detector with Automated Gain and Solid Metal Housing for Precise Flaw Location
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | RFD620 Ultrasonic Flaw Detector With Automated Gain And Solid Metal Housing For Precise Flaw Location | Measuring Range(mm): | 0 ～ 10000 |
|---|---|---|---|
| Measurement Mode: | Single,Dual,Thru | Port Type: | BNC |
| Gain(dB): | 0~120 | Weight(kg): | 1.0(with Battery) |
| Frequency Range(MHz): | 0.5 ～ 20 | Material Velocity(m/s): | 1000 ～ 15000 |
RAYTECH RFD620 Ultrasonic Flaw Detector with Automated Gain and Solid Metal Housing for Precise Flaw Location
Automated calibration,Automated gain
★ DAC,AVG,TCG,B scan,AWS
★ High-speed capture and very low noise
★ Solid metal housing
★ high contrast viewing of the waveform from bright
★ Powerful pc software and reports can be export to excel
Features of RFD620 Ultrasonic Flaw Detector with Automated Gain and Solid Metal Housing for Precise Flaw Location:
1.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);
2.Automated switch three staff gauge ((Depth d,level p,distance s)；
3.Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity；
4.Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
5. 6dB DAC functions;
6.Standards of test for DAC is saved.
7. 500 independence setup, any criterion can be input freely, we can work in the scene without test block；
8.Big memory of 1000 A graph
9.Automated gain and gain scan;
10.Peak Hold and Peak Memory；
11.B scan;
12.AWS D1.1
13.Automated make video of test process and play; use upan,the length of video is unlimited.
14.Powerful pc software and reports can be export to excel;
15.Li battery, continue working time up to 10 hours;
16.The embeded software can be online updated；
Other assistant function of RFD620 Ultrasonic Flaw Detector with Automated Gain and Solid Metal Housing for Precise Flaw Location
Display freeze;
Automated echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Electronic clock calendar ;
Two gates setting and alarm indication;
Gate and DAC alarm;
Specification of RFD620 Ultrasonic Flaw Detector with Automated Gain and Solid Metal Housing for Precise Flaw Location
|
Title |
Parameter |
Title |
Parameter |
|
Measuring Range(mm) |
0 ～ 10000 |
Measurement Mode |
Single,Dual,Thru |
|
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
|
Horizontal Linearity Error |
≤0.1% |
Pulse Displacement(μs) |
-20 ～ +3400 |
|
Sensitivity Leavings |
≥62dB |
Zero(μs) |
0.0 ～ 99.99 |
|
Dynamic range |
≥34dB |
Port Type |
BNC(Q9) |
|
Resolving Power |
≥36dB |
Operating Temperature (℃) |
-20～50 |
|
Frequency Range(MHz) |
0.5 ～ 20 |
H×W×D(mm) |
240×156×50 |
|
Gain(dB) |
0 ～ 120 |
Weight(kg) |
1.0(with battery) |
|
Material Velocity(m/s) |
1000 ～ 15000 |
|
|
Standard Configuration of RFD620 Ultrasonic Flaw Detector with Automated Gain and Solid Metal Housing for Precise Flaw Location
|
|
Name |
QTY |
|
1 |
Main unit |
1 |
|
2 |
power adaptor |
1 |
|
3 |
probe connecting cable |
2 |
|
4 |
Instrument case |
1 |
|
5 |
Instruction manual |
1 |
|
6 |
Straight probe 10mm 4MHz |
1 |
|
7 |
Angle probe 8x9 60°4MHz |
1 |
|
8 |
Certificate of approval |
1 |
|
9 |
Warranty card |
1 |
|
10 |
Software and cable |
1 |

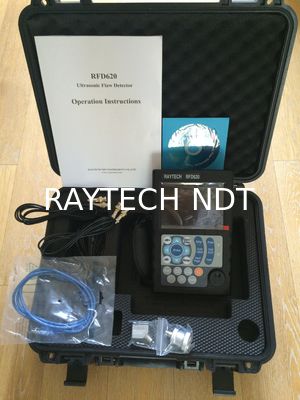

Picture of RFD620 Ultrasonic Flaw Detector with Automated Gain and Solid Metal Housing for Precise Flaw Location
