Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface

Certification
Good quality Portable Hardness Tester for sales
Good quality Portable Hardness Tester for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface

China Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface supplier
Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface supplier Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface supplier

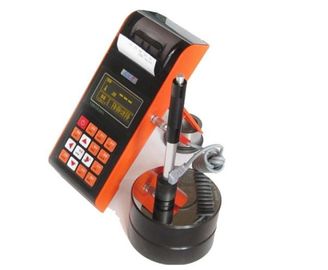

Large Image :  Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RH-150

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Power: Electronic Usage: Hardness Tester
Product Name: Built-in Printer Portable Hardness Tester, Large Memory And LCD Display, USB Interface Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS
Display: Dot Matrix LCD, 128×64 Dots Printing Paper: Width Is (57.5±0.5)mm, Diameter Is 30mm
Data Memory: 100- Max 600 Groups. Interface: USB2.0



Built-in Printer Digital Portable Hardness Tester, Large



Memory and LCD Display, USB Interface





Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface



Features:



1.Large screen(128×64 dot matrix LCD), showing all functions and parameters.



2.Test at any angle, even upside down.



3.Support "forged steel (Steel)" material, when using the D/DC impact device test "forged"



sample, can read HB value directly, without the need for manual checking table.



4.Wide measuring range. It can measure the hardness of all metallic materials. Direct display of



hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values



immediately.



5.Seven impact devices are available for special application. Automatically identify the type of



impact devices.



6.Large capacity memory could store 600 groups (Relative to average times32~1 ) information



including single measured value, mean value, testing data, impact direction, impact times,



material and hardness scale etc.



7.Upper and lower limit can be preset. It will alarm automatically when the result value exceeding



the limit.



8.Battery information indicates the rest capacity of the battery and the charge status.



9.User calibration function.



10.USB port with the PC humanity multi-functions data proceeding software.



11.Original imported high speed thermal printer support the immediate printing function. It can



save data permanently.



12.NI-MH rechargeable battery as the power source. Charge circuit integrated inside the



instrument. Continuous working period of no less than 200 hours (EL off and no printing).



13.Auto power off to save energy.



14.Industrialized housing design, sturdy, compact, portable, high reliability, suitable for harsh



operating environment, vibration, shock and electromagnetic interference.



15.Excellent after-sale service system for high quality products---two years’ guarantee and all life



maintenance. Easy to buy and comfortable to use.



Main Application:



1.Die cavity of molds



2.Bearings and other parts



3.Failure analysis of pressure vessel, steam generator and other equipment



4.Heavy work piece



5.The installed machinery and permanently assembled parts



6.Testing surface of a small hollow space



7.Material identification in the warehouse of metallic materials



8.Rapid testing in large range and multi-measuring areas for large-scale work piece.





Specification:







RH-150

Measuring range



HLD (170-960), HRC (17.9-69.5),HB (19-683), HV (80-1042), HS (30.6-102.6), HRA(59.1-88), HRB (13.5-101.7)

Measuring direction

360°

Hardness Scale

HL, HB, HRB, HRC, HRA, HV, HS

Display

Dot matrix LCD, 128×64 dots

Data memory

100- max 600 groups. (relative to impact times 32~1)

Printing paper

width is (57.5±0.5)mm, diameter is 30mm

Battery pack

6V NI-MH

Battery charger

9V/500mA.

Continuous working period

about 200hours (With backlight off, no printing)

Interface

USB2.0



Standard configuration:





No.

Item

Qty

Remarks

Standard

Configuration

1

Main Unit





2

D type impact device

With cable



3

Standard test block





4

Cleaning brush (I)

1





5

Small support ring

1





6

Battery Charger

1

9V 500mA



7

Paper for printing

1





8

Manual

1





9

DataPro software

1





10

Communication cable

1





11

Instrument case

1





12

Cleaning brush (II)

1

For use with G type impact device

 Optional

13

Other type of impact devices and support rings







Built-in Printer Digital Portable Hardness Tester, Large Memory and LCD Display, USB Interface
